My 90 lx build, sn95 brake swap

Discussion in 'Members Build-Up Projects' started by MerleHaggard, May 4, 2018.

  1. MerleHaggard

    MerleHaggard Member

    33
    16
    8
    Nice! One day I'll get mine there! But even if it's overkill atm, You got to plan ahead lol

  2. MerleHaggard

    MerleHaggard Member

    33
    16
    8

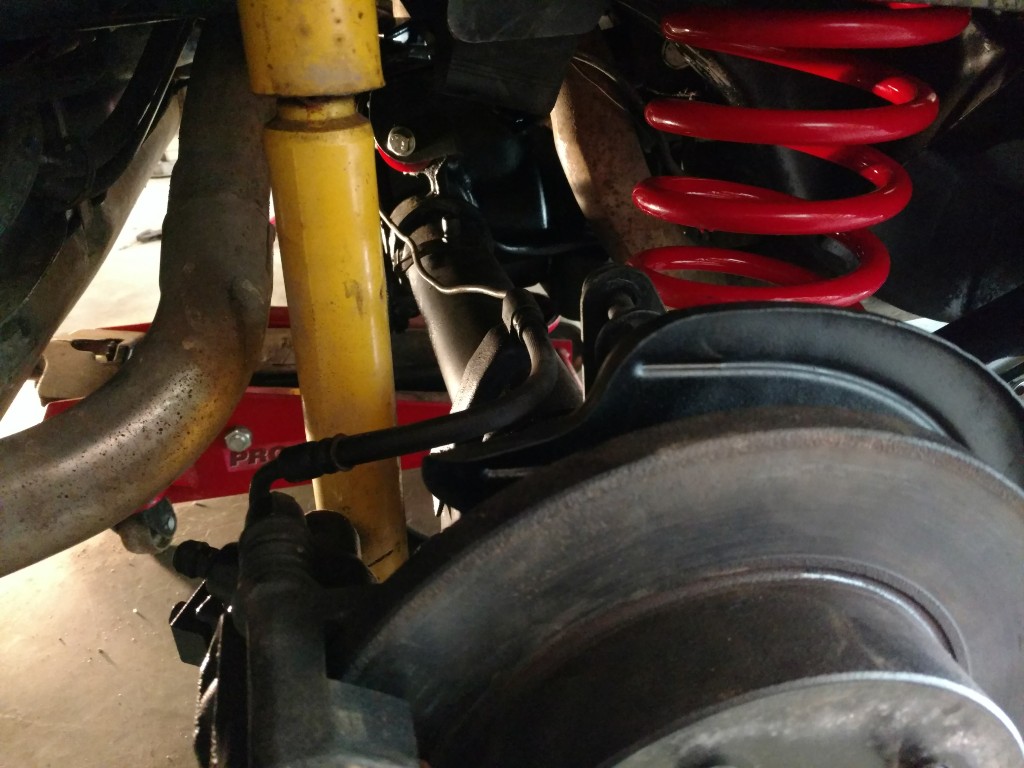

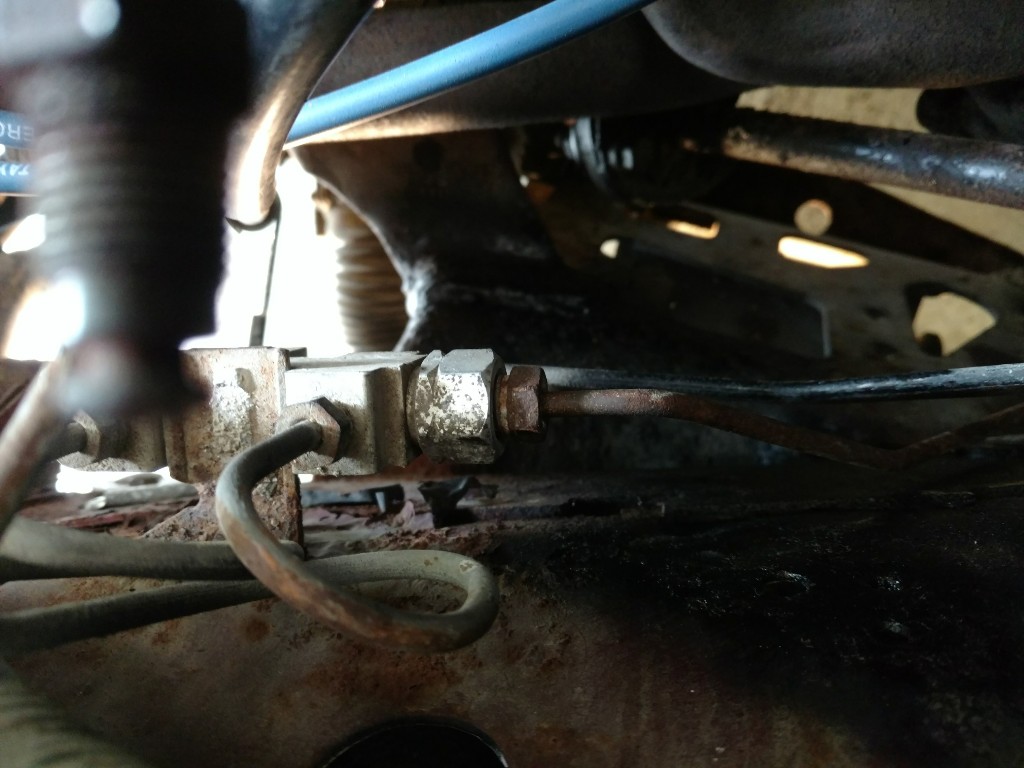

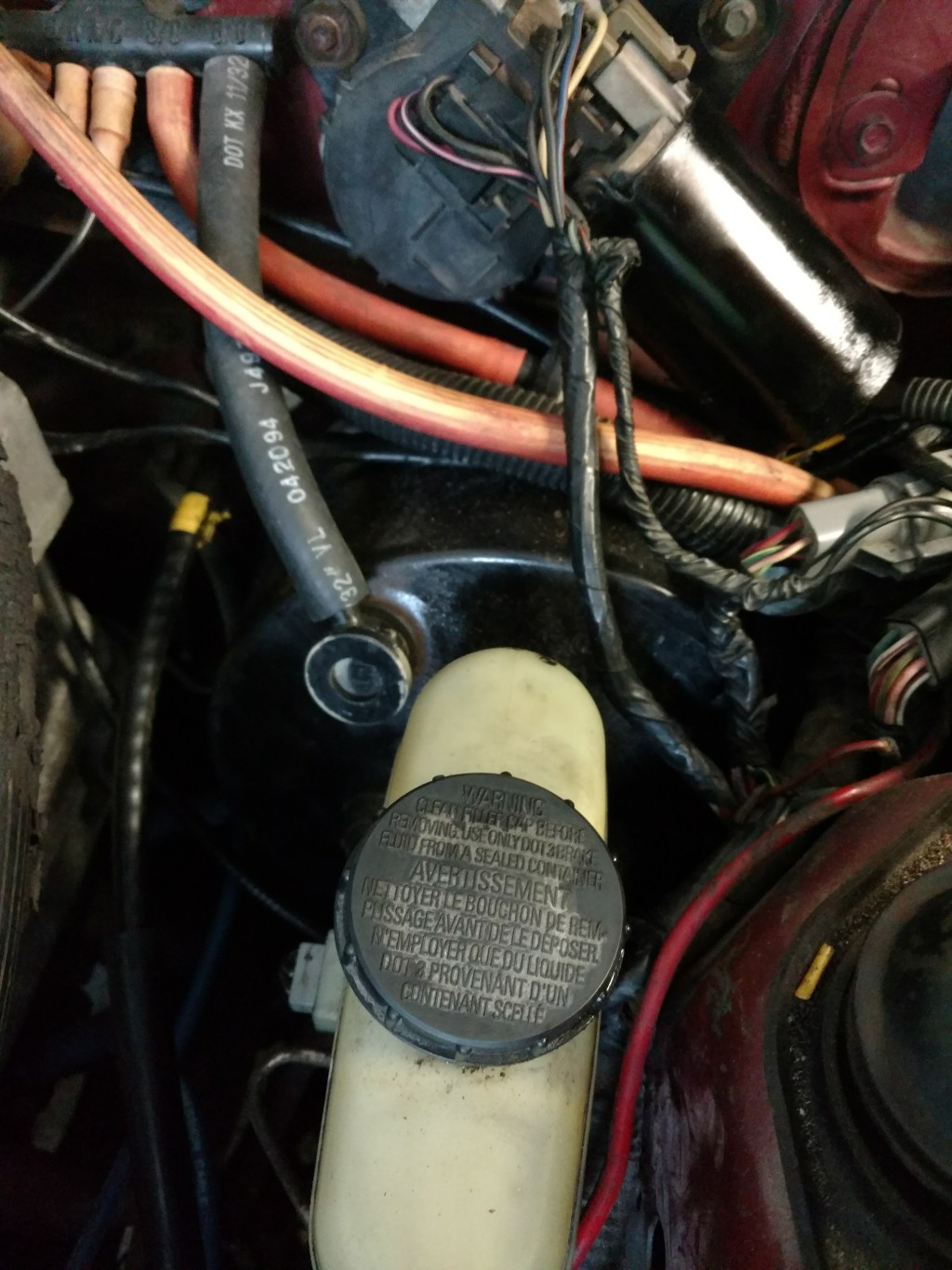

    Finally got a double flaring tool and cut my rear brake lines and reflared them with the sn95 fittings, Installed a Ford racing adjustable proportional valve, Connected the passenger line with the adapter as well. Swapped out the Brake booster and master cylinder with the sn95 stuff (PITA but it fits) Now came to the combo valve.Instead of swapping with the sn95 or buying one.If you look at the fox valve and sn valve, both have fitting on the back.Just take the blank plug from the rear of the fox, and remove the line and fittings from the rear of the sn valve and plug them in the factory fox valve, leaving everything in so you retain the shuttle valve while gutting the front half of the valf. Everything is connected and ready for fluid except I have to figure out the brake switch issue. I also included a pic of the rear fitting you need to swap on the combo valve to retain the stock fox valve.The line fitting and the larger one it threads into need to be swapped over to use your factory fox combo valve with sn95 BB/MC...Simple and easy.. PicsArt_06-26-08.19.26.jpg PicsArt_06-26-08.17.21.jpg PicsArt_06-26-08.18.13.jpg

    Last edited: Jun 26, 2018
    broncojunkie likes this.
  3. MerleHaggard

    MerleHaggard Member

    33
    16
    8

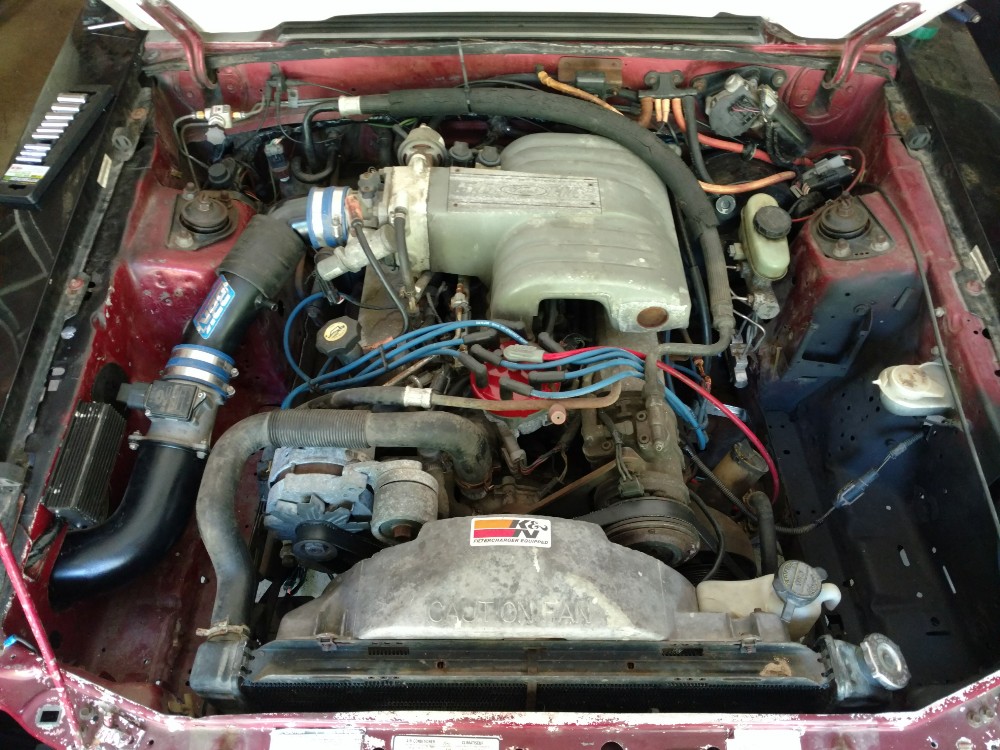

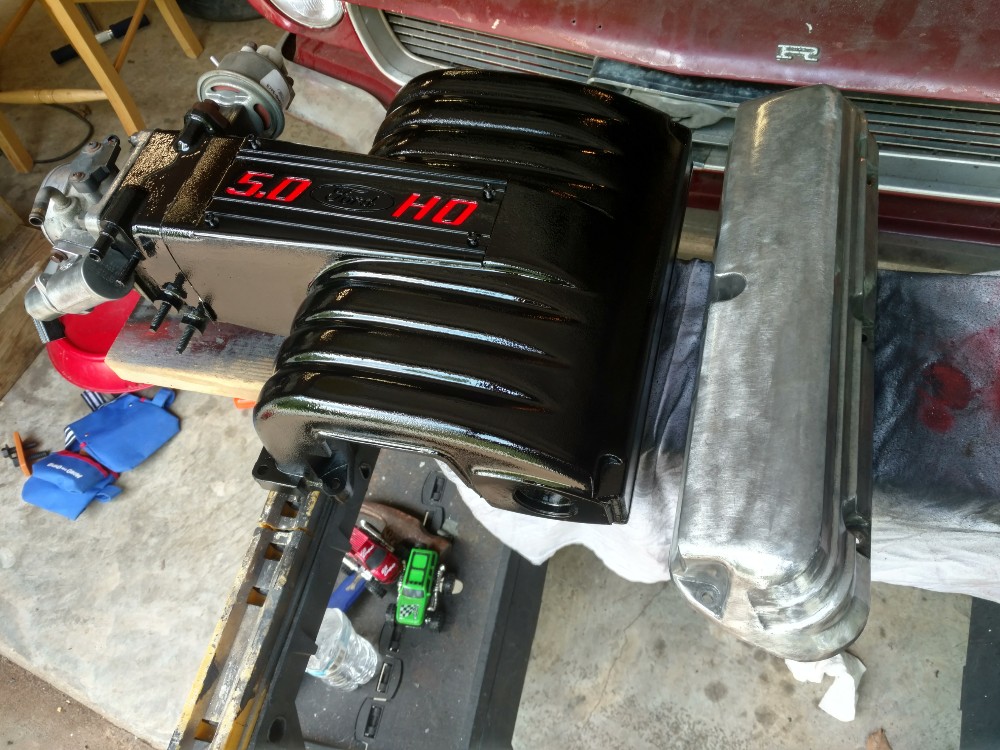

    So I've been busy the last few weeks and hadn't gotten a chance to post any updates...But turns out the sn95 brake booster is bad(hear loud hissing/vacuum leaked under dash) so I've got to buy another one....But I did wire tuck the passenger,driver and headlight harness..Then decided to do a little dress up and painted my intake manifold and stripped my valve covers to bare metal and cleared them.Was going to polish them but I liked the bare metal look and stuck with it lol PicsArt_07-29-12.14.39.jpg PicsArt_07-29-12.12.52.jpg

    Last edited: Jul 29, 2018
    Redtwilight likes this.
  4. Redtwilight

    Redtwilight Shinigami

    132
    61
    28
    Looks so much cleaner without all the wires in view. I'd like to do that to mine one day.

    The intake came out great!

    MerleHaggard likes this.
  5. ALMOST STOCK

    ALMOST STOCK Active Member

    263
    157
    43
    Redtwilight and MerleHaggard like this.
  6. MerleHaggard

    MerleHaggard Member

    33
    16
    8
    Thanks, I was unsure about the intake I didn't want to make it look "ricey" but I like the end results.As far as the wire tuck goes, It was time consuming but pretty simple...I only had to cut and splice two ground wires on the driver side harness.The AC wires are the only ones I didn't hide, But for the passenger and driver side harnesses i just ran them through the hole in the back of the shock tower into the inner fender and plugged back up..I just removed the wire lume from the harness that runs across the firewall and then taped it up tight and tucked it up under the pinch weld.Definately worth the time imo..I hadn't gotten around to the the vacuum lines yet, but I may tackle that while I have the upper intake off.Any questions feel free to ask

  7. ALMOST STOCK

    ALMOST STOCK Active Member

    263
    157
    43

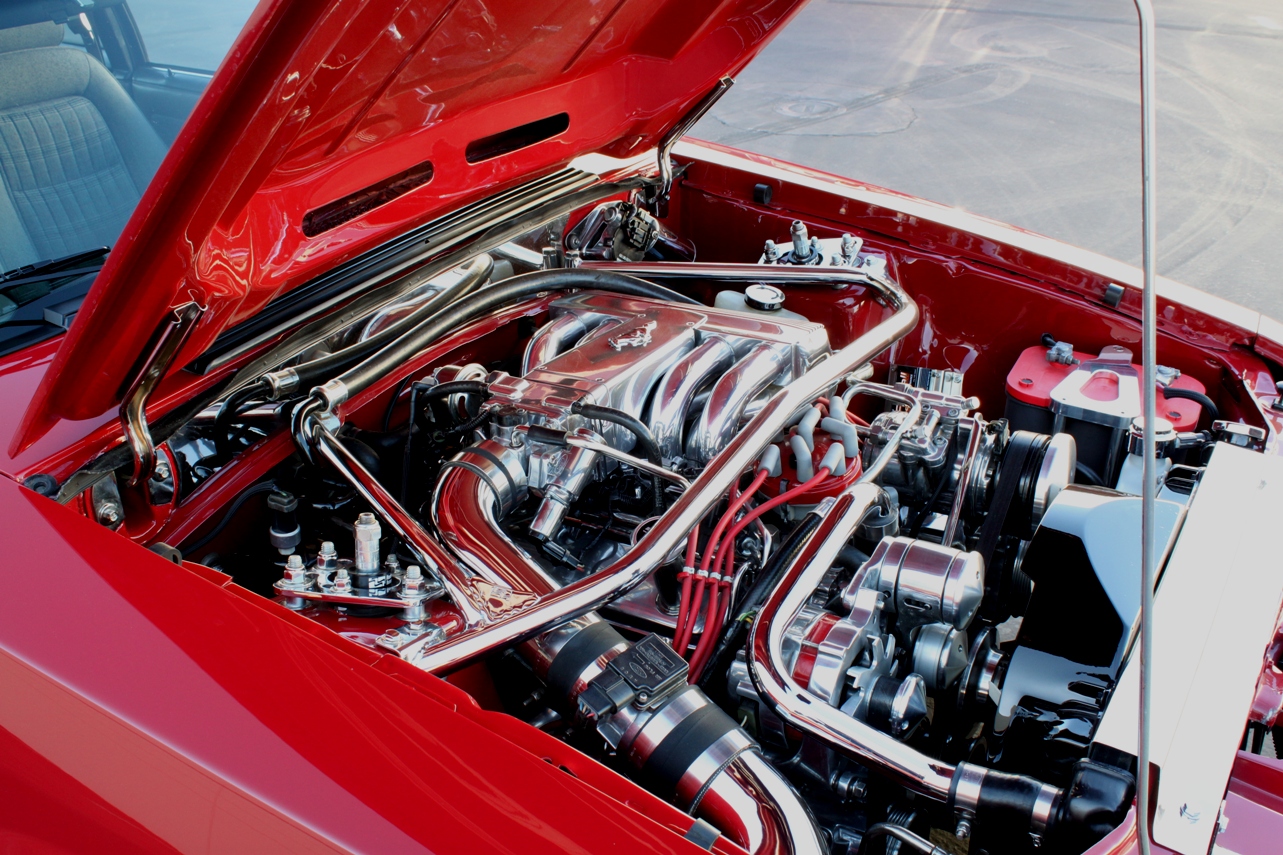

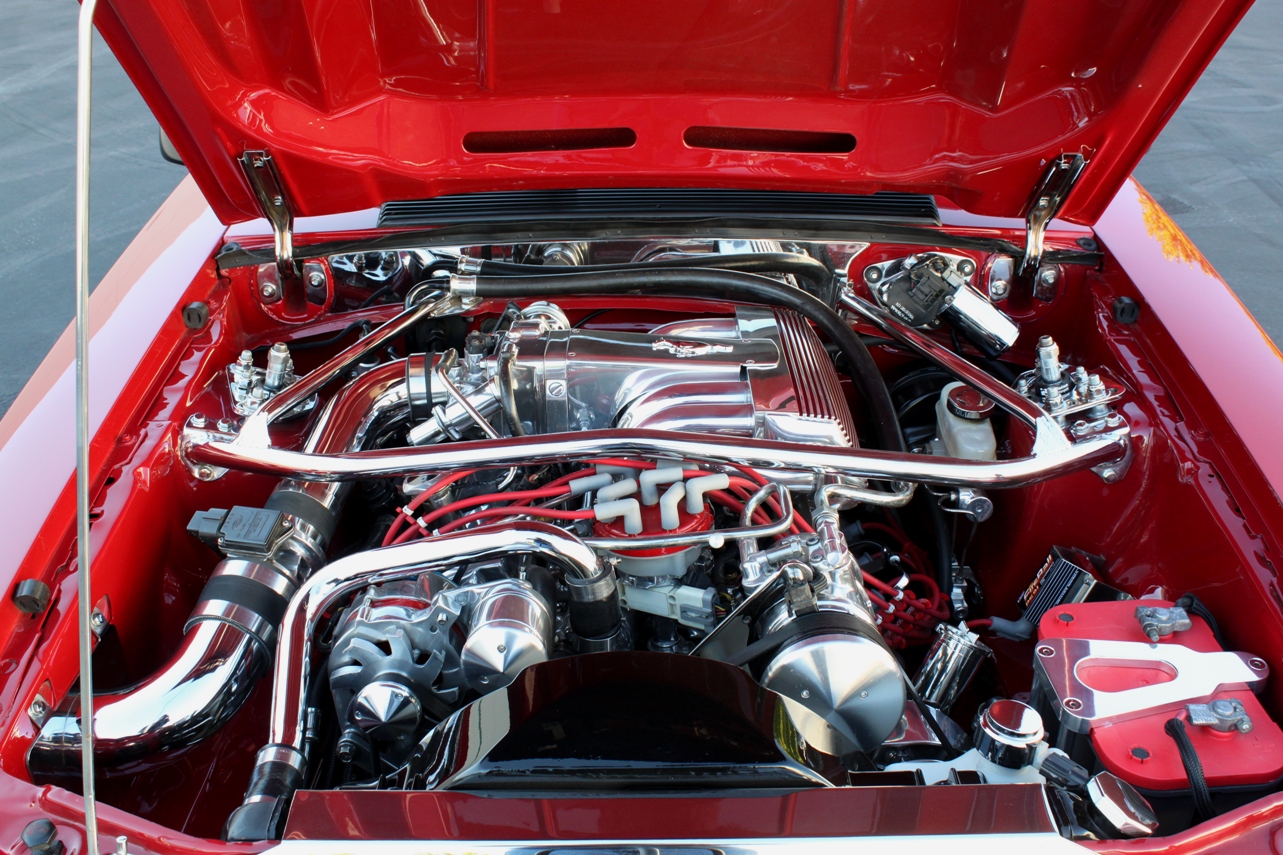

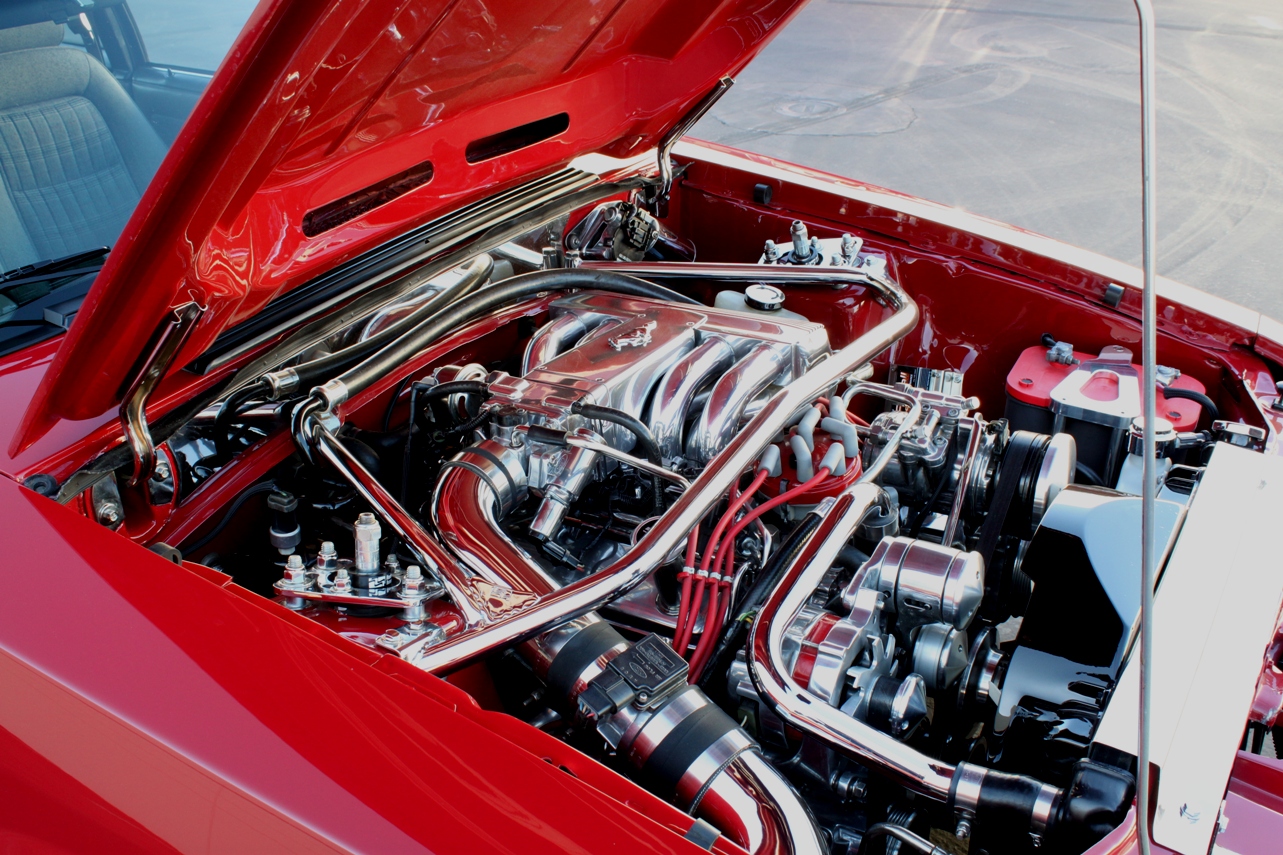

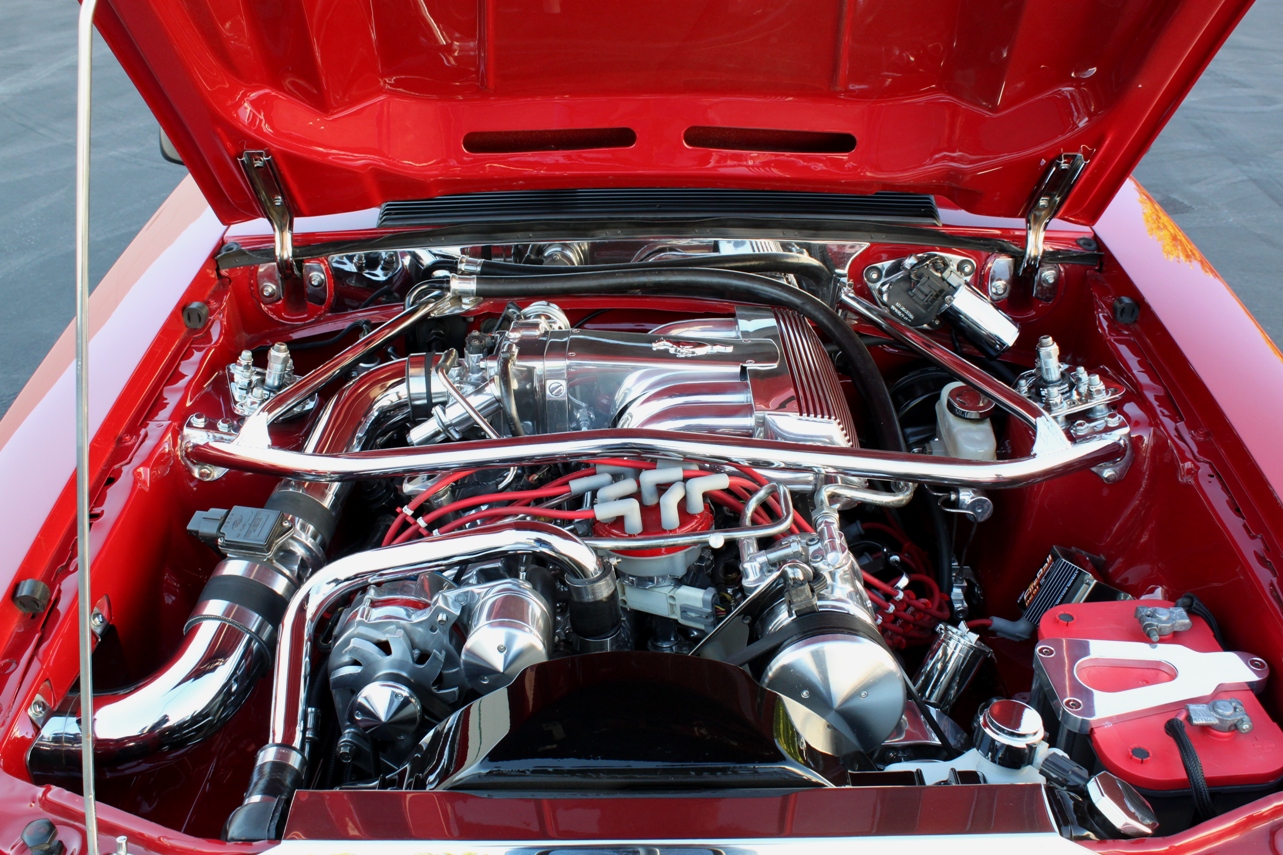

    I did my wire tuck and hid the vacuum lines over 16 years ago , I spent 4 hours hiding wires and vacuum lines on the passenger side and 6 hours on the drivers side. I believe I was one of the first to do that. IMG_4220.JPG IMG_4224.JPG .

    MerleHaggard and Redtwilight like this.
  8. MerleHaggard

    MerleHaggard Member

    33
    16
    8
    Man that is a beautiful engine bay! Hopefully in time I'll be able to get mine smoothed out and all the holes filled like that one day.. Awesome job

  9. ALMOST STOCK

    ALMOST STOCK Active Member

    263
    157
    43
    Thanks for the complement.

    MerleHaggard likes this.
  10. MerleHaggard

    MerleHaggard Member

    33
    16
    8
    I just seen where you posted your links up above, I'm pretty sure your write up is what I went by when I did mine but it was on allfordmustangs I believe...Thanks a bunch! I guess I'm going to go after the vac trees now lol

  11. ALMOST STOCK

    ALMOST STOCK Active Member

    263
    157
    43
    I've been on allfordmustang for years so more tan likely it was my write up you saw. Glad I could help

    MerleHaggard likes this.
  12. MerleHaggard

    MerleHaggard Member

    33
    16
    8

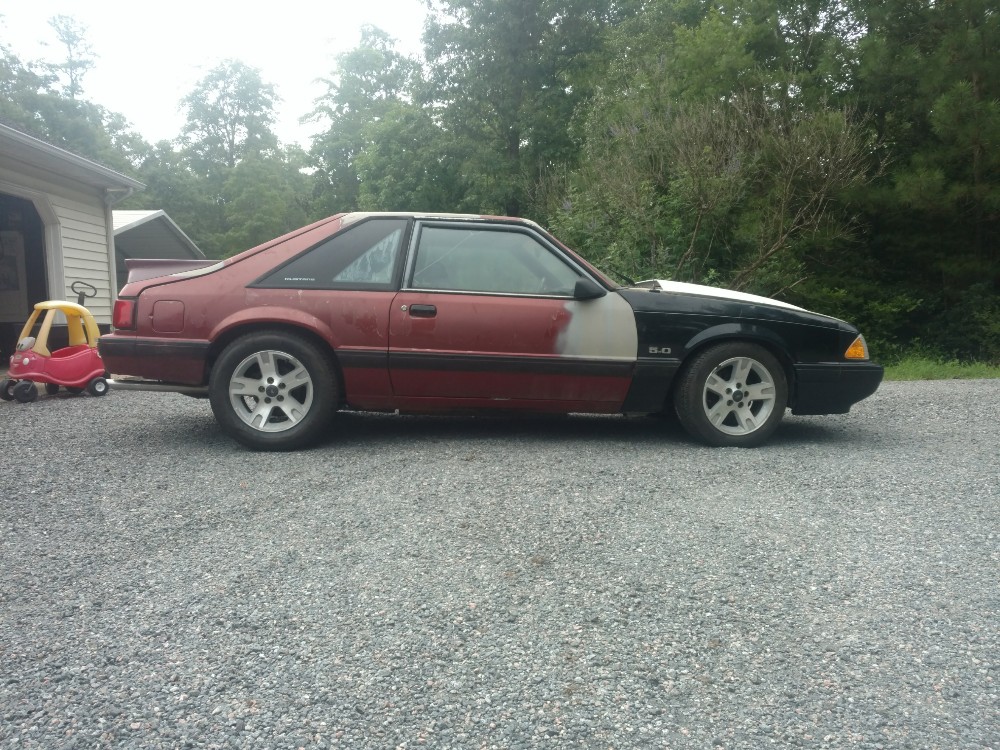

    PicsArt_08-01-07.23.50.jpg Finally got this Haggard piece rolling again lol.Found these wheels at the salvage yard, idk what they came off of taurus or ranger or something.. Anyways figured I try them out..Got tires put on today..Now she needs a paint job lol

    broncojunkie likes this.
  13. Redtwilight

    Redtwilight Shinigami

    132
    61
    28
    Are you thinking of going back the original color or changing it up?

  14. MerleHaggard

    MerleHaggard Member

    33
    16
    8
    Not 100% sure yet. It's between the original burgundy, black or Toyota timberland Mica to match my Tundra lol

  15. Redtwilight

    Redtwilight Shinigami

    132
    61
    28
    That Mica would look good!

    MerleHaggard likes this.
  16. MerleHaggard

    MerleHaggard Member

    33
    16
    8
    Yeah besides green being my favorite color in general, The Mica looks awesome on my truck when its clean that's why I'm considering it..

  17. Redtwilight

    Redtwilight Shinigami

    132
    61
    28
    What a coincidence... I'm thinking of painting my coupe green.
    Either Green Gem Metallic or 01 Bullit Dark Hyland Green. Though the 2015 Guard Green Mettalic is tempting too!

    MerleHaggard likes this.
  18. MerleHaggard

    MerleHaggard Member

    33
    16
    8
    Hell yeah man be sure to post pics!! I'm waiting for my nephew to find time to come get mine ready for paint, he does body work and prep work at a dealership so he stays pretty busy
